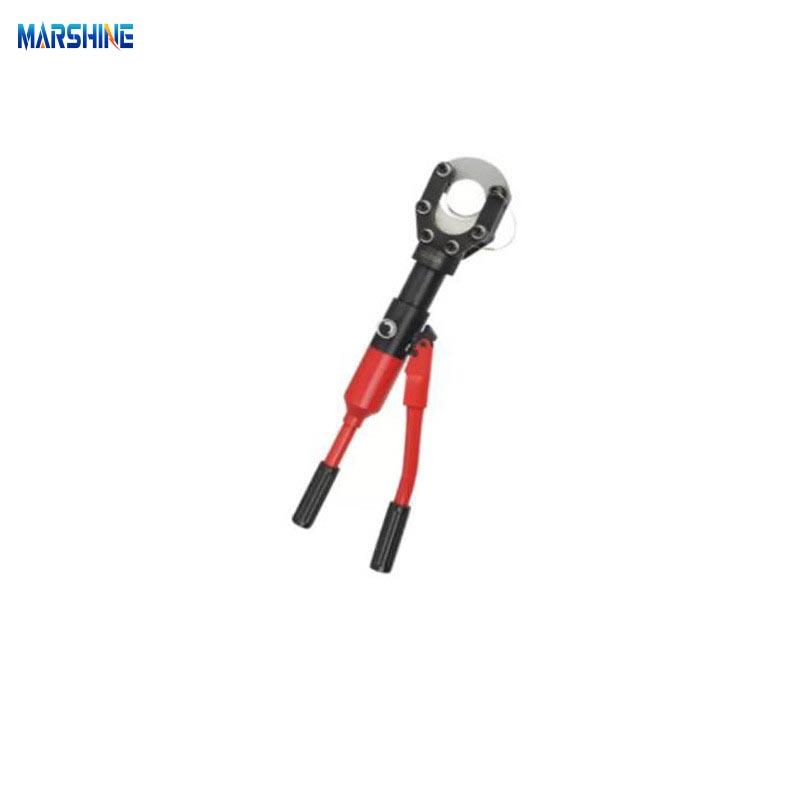

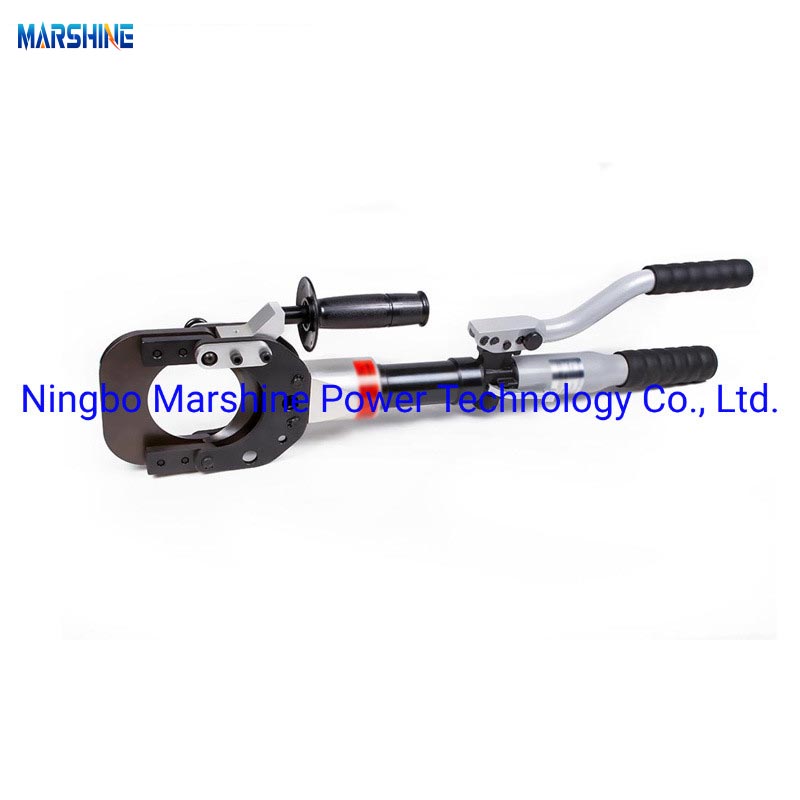

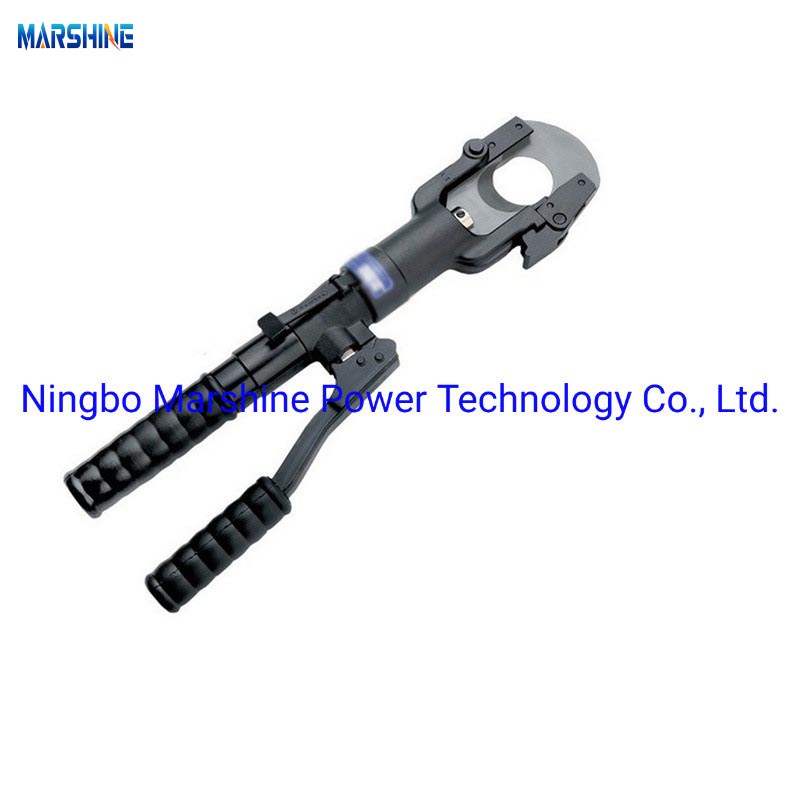

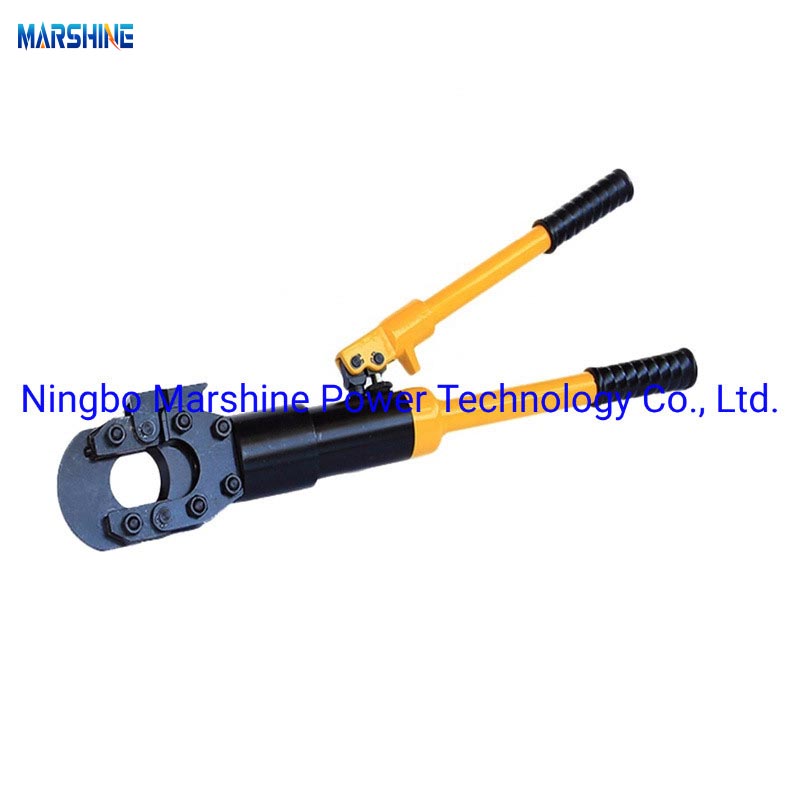

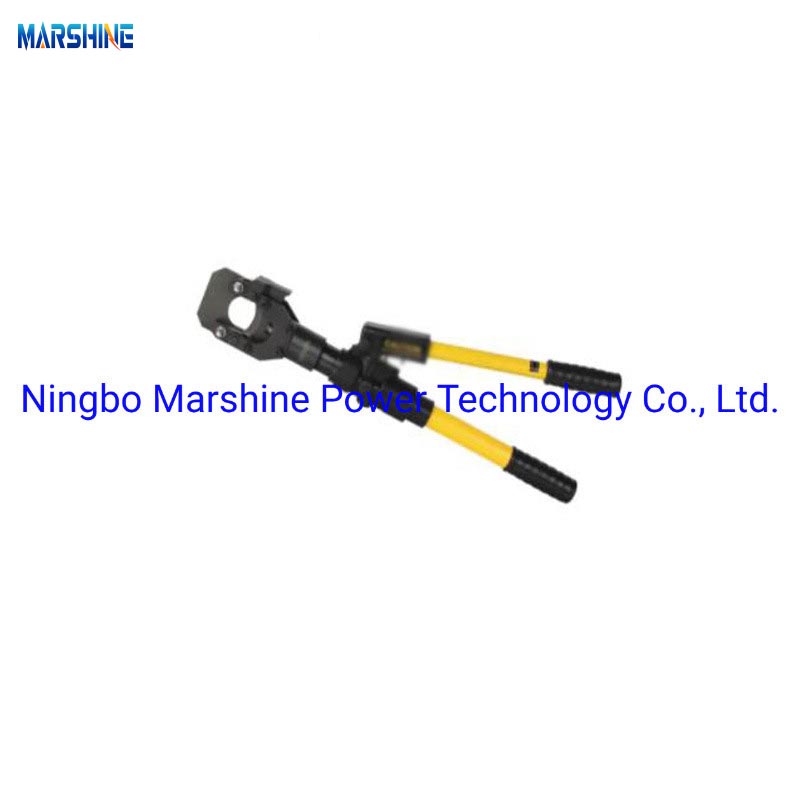

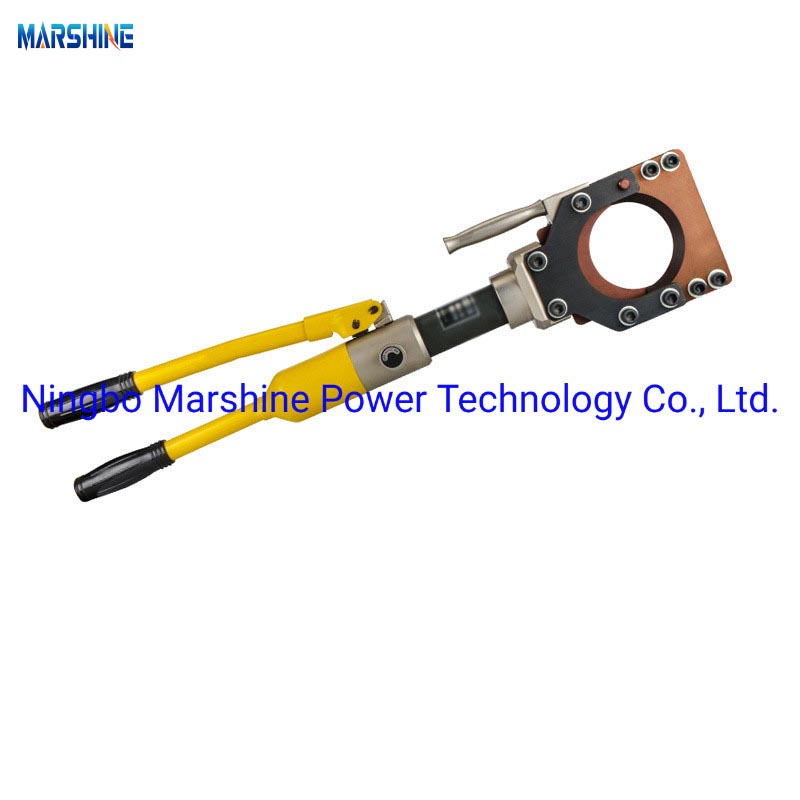

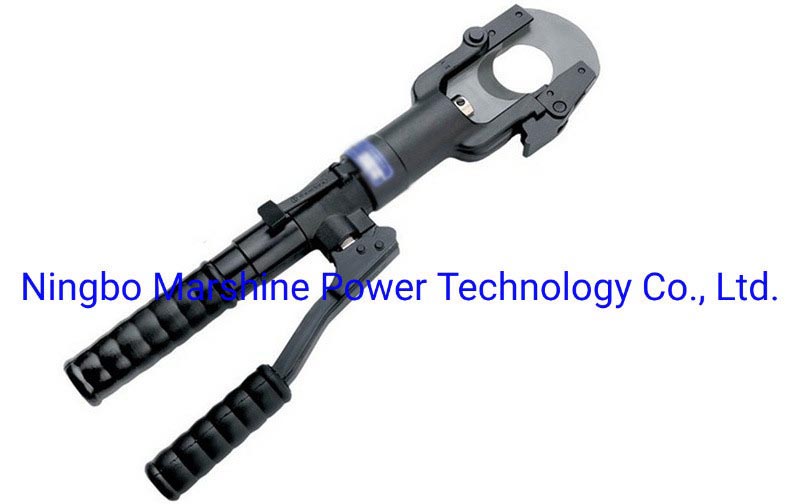

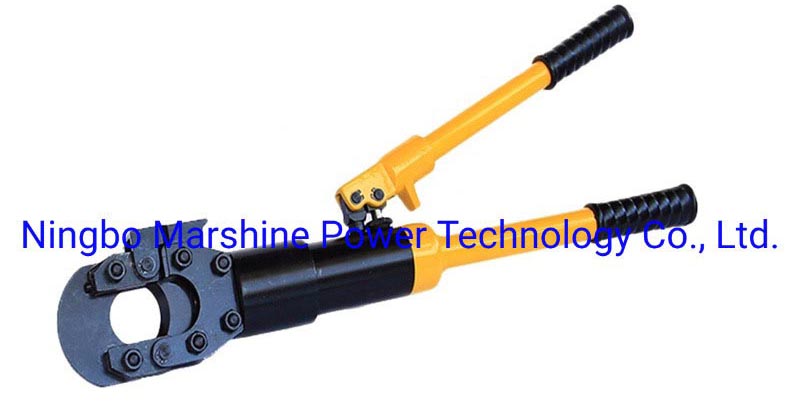

Engineered to deliver unmatched cutting performance in the most demanding utility, construction, and industrial environments, the MARSHINE Manual Operated Hydraulic Cutter is a cost-effective solution for professionals. Combining manual control with hydraulic force, this outstanding tool effortlessly severs high-tensile steel cables, conductors up to 40mm diameter, and steel rope or steel bar up to 20mm diameter, even in remote or hazardous locations. It ensures clean, precise cuts without the need for external power sources, making it ideal for live-line work, emergency repairs, and rugged job sites.
Product Parameter
| Item number | 16200-B | 16200-A |
| Model | CPC-40BL | CHX-45 |
| Max cutting force(KN) | 60 | 60 |
| Cutting range | ACSR:≤φ40mm | ACSR:≤φ45mm |
| Steel rope:≤φ20mm | Steel bar:≤φ20mm | |
| Weight(kg) | 5.6 | 4.9 |
Product Feature
Manual Operation: No power source required, perfect for use in remote areas or outdoor environments.
Sharp Hardened Blade: Precision engineered for clean, burr-free cuts and longer life.
Safety Locking Mechanism: The MARSHINE Manual Operated Hydraulic Cutter can prevents accidental operation, ensuring safe and reliable cutting performance.
Portable Design: Lightweight and compact for easy transportation and field use.
Hydraulic Manual Power: Generates 60 KN of cutting force via a manual pump mechanism to cut wire rope, ACSR conductors and steel bar with minimal physical effort.
Safety First: Locking safety latch and pressure relief valve prevent accidental activation, compliant with CE and ISO standards.
All-Weather Durability: Corrosion-resistant coating and IP65-rated components withstand rain, dust and extreme temperatures (-30°C to 120°C).
Product Application
The MARSHINE Manual Operated Hydraulic Cutter is suitable for cutting armored and control cables.
Cable preparation in substations and switchgear installations.
Ideal for field maintenance and emergency cable cutting.
Can cuts overhead power lines, distribution cables and ACSR conductors.
Ideal for cutting steel rigging wire, marine mooring lines and building steel bar.
Can be used for railway track maintenance and industrial plant machinery repairs.
Product Details
Bellow are the details about our MARSHINE Manual Operated Hydraulic Cutter, which is your go-to tool for efficient, safe, and precise cable cutting in a wide range of applications:
Industry Proven: Trusted by utility and construction professionals worldwide.
Durable: Manufactured with premium materials to ensure long-term reliability.
Easy to Use: Ergonomic design enhances comfort and operating efficiency.
Safety Compliant: Non-conductive handles ensure safe use around energized equipment.
Versatile: Compatible with a wide range of cable sizes and types.
Zero Power Consumption: Operates without electricity, batteries, or compressors, making it ideal for off-grid or explosive environments.
Time Saving: Cuts 50% faster than manual bolt cutters for efficient cutting in a single pass.
Cost Effective: Durable construction and replaceable blades reduce long-term costs by 60% with a lifespan of more than 10 years.
