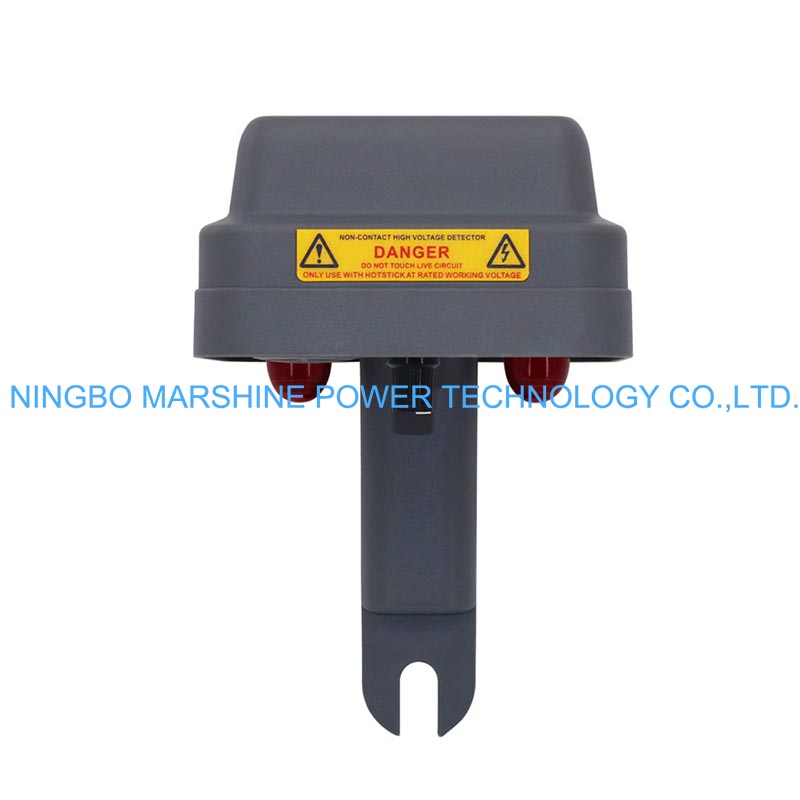

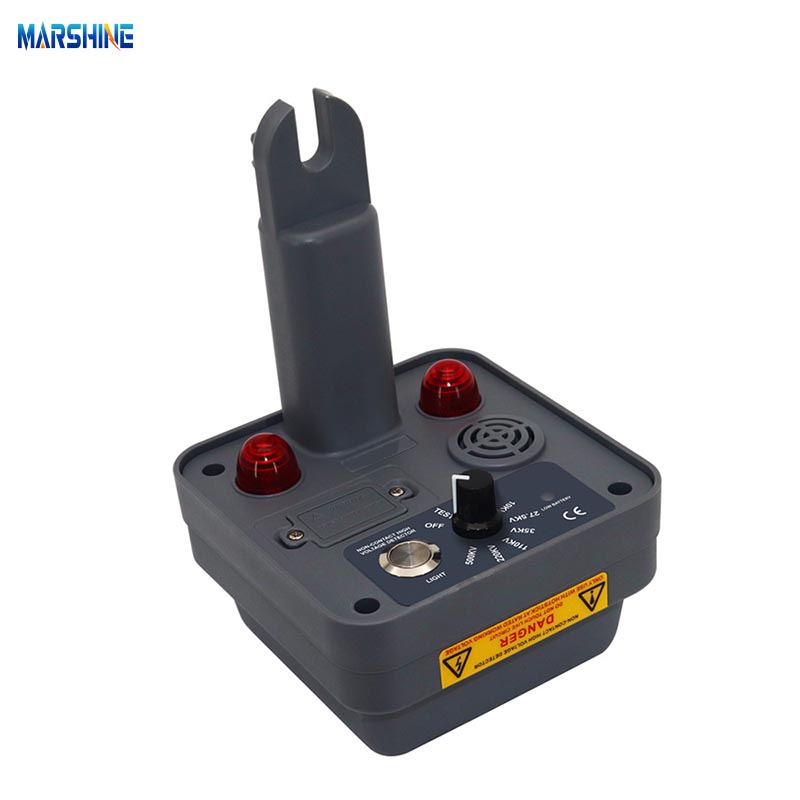

The MARSHINE MAES9080 High Voltage Detector is a reliable safety device which was used to detect the presence of high voltage on the electrical equipment and power lines. Designed for the professionals working in the power utility, this device is able to offers a reliable, non-contact voltage detection with the visual and audible indicators. Built with the safety, durability, and precision in mind, this MAES9080 can helps the operator to prevent the accidental contact with the live components, so that to enhance the safety during the electrical operations.
Product Parameter
| Model | MAES9080 |
| Function | Voltage detection, cable tracking |
| Reference conditions | 23°C ± 5°C, 75% RH or less |

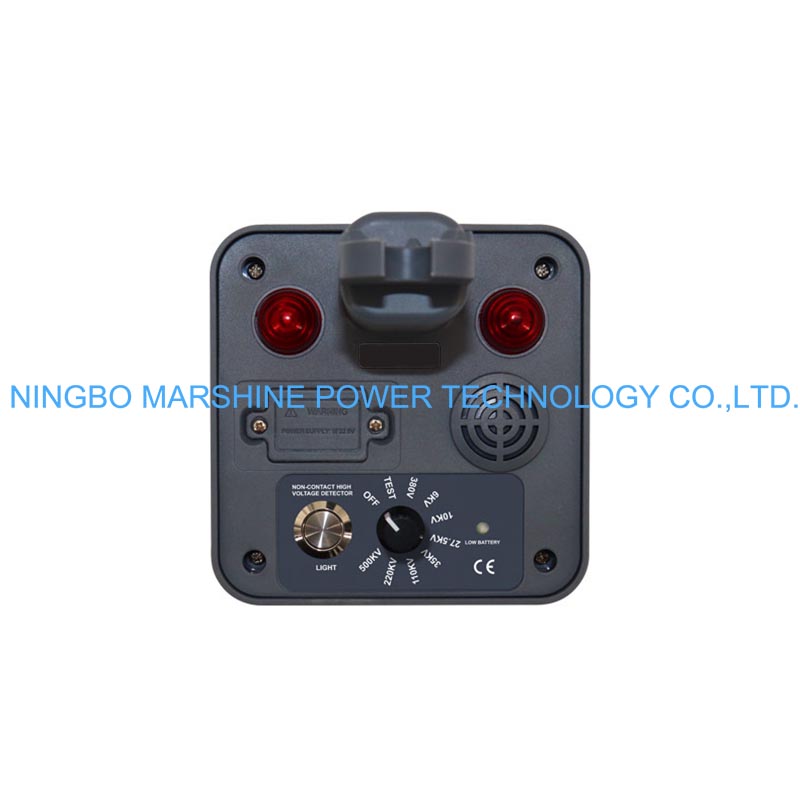

| Test voltage (V) | 380V; 6KV; 10KV; 27.5KV; 35KV; 110KV; 220KV; 500KV |

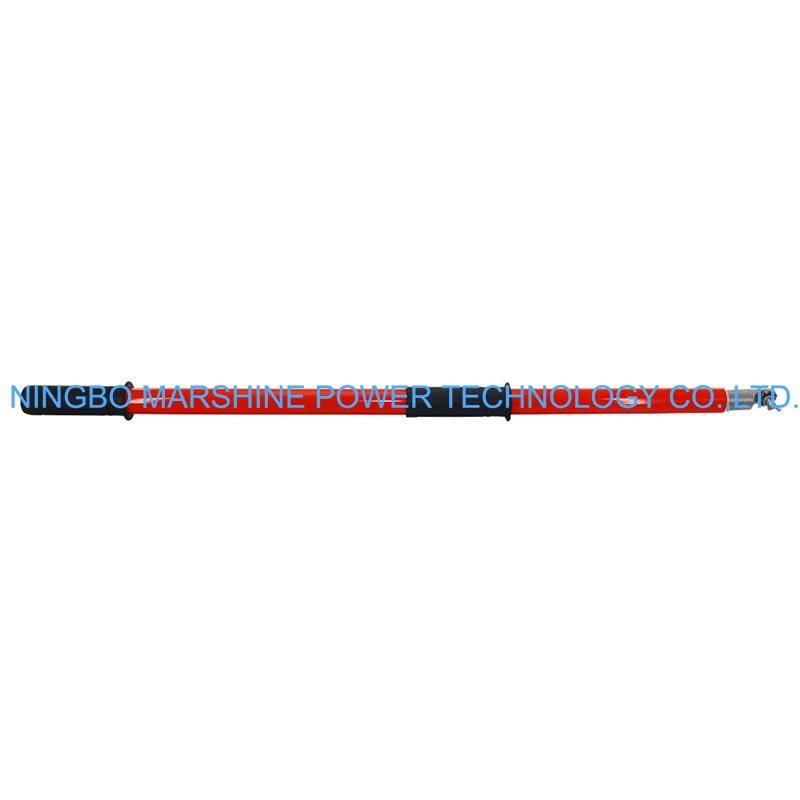

| Insulation rod | 4 sections of 3.5 meters (optional) |

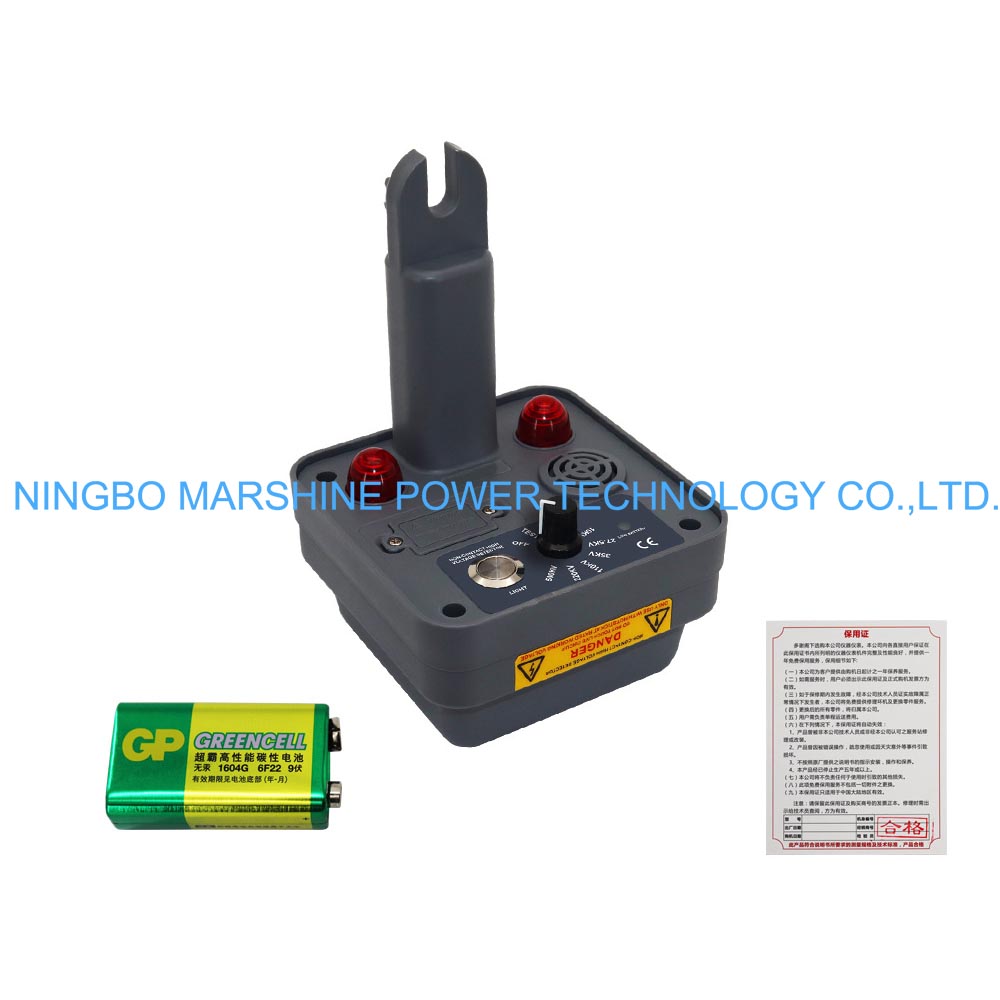

| Power supply | DC 9V (one 6F22 battery) |
| Instrument size | 115mm (length) *115mm (width) *169mm (height) |
| Sealing grade | IP65 |
| Prompt function | When the detection voltage exceeds the setting voltage of the gear, an audible and visual prompt will be issued |
| Instrument weight | 390g (including battery) |
| Working temperature and humidity | -10°C~+50°℃<85%RH |
| Storage temperature and humidity | -15°C~+55°C<90%RH |
| Applicable safety regulations | EN 61326-1 CISPR 11EN 61000-4-2EN 61000-4-3EN 61000-4-8 |
Product Feature
Be capable of detecting the high voltages from 380V to 500kV, this MARSHINE MAES9080 High Voltage Detector is suitable for the medium to high-voltage systems. No need for direct contact with conductors, can ensures the user's safety by detecting the voltage from a distance. Been manufactured with the high-dielectric materials, it is able to protect the users during the detection. The high-intensity LED lights and a loud buzzer can alert the user to the presence of voltage. With its compact design and lightweight, it is easy to carry and operate, even during the long-term fieldwork.
Product Application

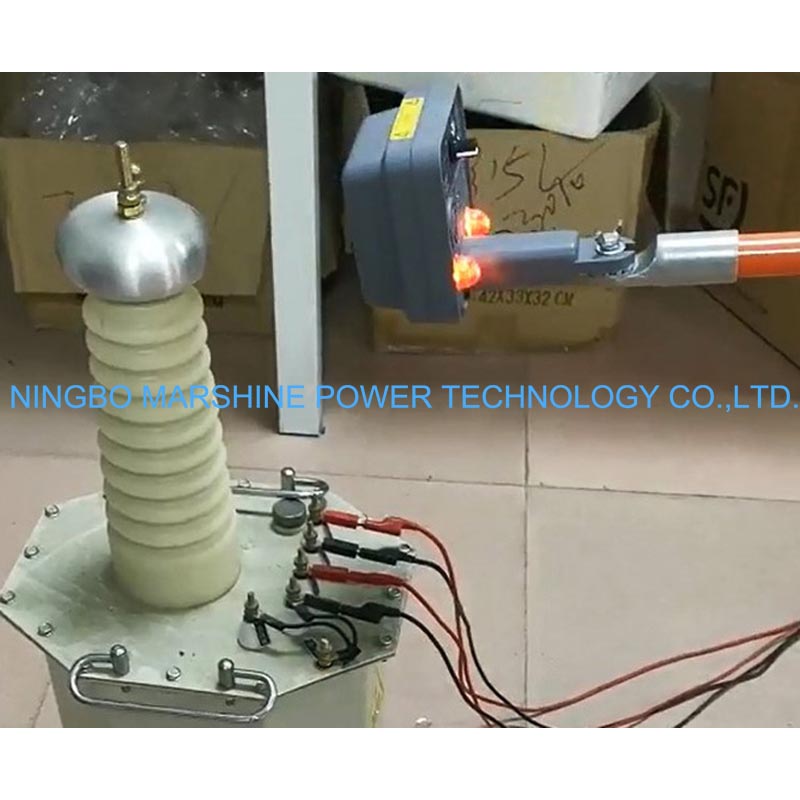

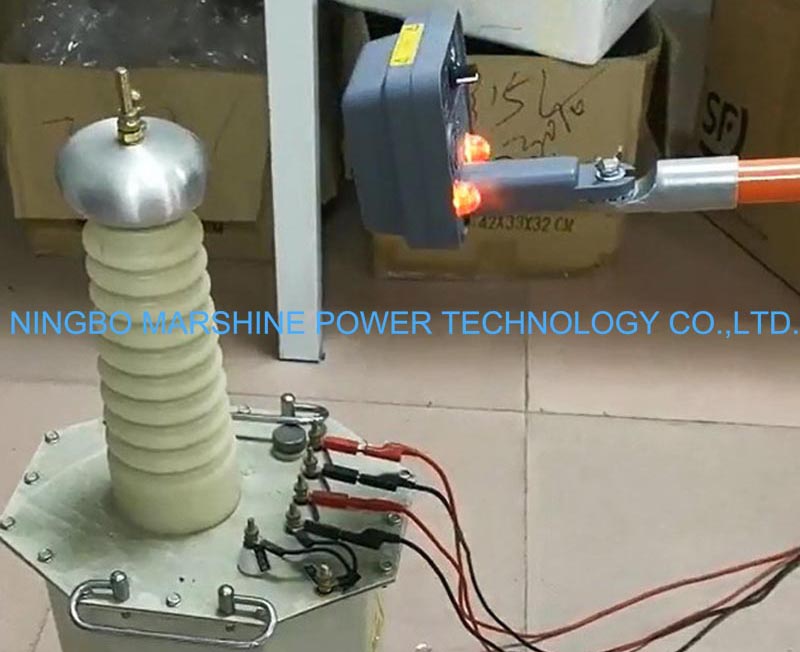

The MARSHINE MAES9080 High Voltage Detector is suitable for detecting the voltage presence in the overhead lines, substations, and switch gears, and can safety checks the conductor line before the electrical maintenance or repair works. It is also able to deal with the electrical testing for the railways, power plants, and the high-voltage installations, or for identifying the energized cables in the utility and industrial environments, and effectively prevent the accidental contact with the live electrical components.
Product Details
The MARSHINE MAES9080 High Voltage Detector is a vital tool for ensuring the safety during the high-voltage electrical work.
Original Place:Zhejiang,Ningbo.
Lead Time:10-14days.
Warranty:1year.
Certifications:CE,ISO9001.
